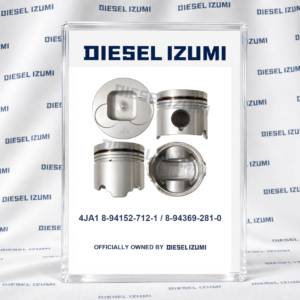

Piston with Pin and Clips 8-94152-712-1 / 8-94369-281-0 for Isuzu 4JA1
US$34.47
Isuzu 4JA1 2.5 L 8V diesel engine piston, standard 93 mm bore, with piston pin and retaining clips. References 8-94152-712-1 and 8-94369-281-0. Sold per cylinder. Piston rings are not included.
888 in stock
Send the OE/reference number, machine details, and product photos when the part match is uncertain.
Warranty eligibility and terms are reviewed against the details confirmed for the order.
Eligible unused, complete parts may be requested for return within 90 days after delivery, subject to inspection and approval.
Send part numbers, photos, and destination details for support follow-up.
Piston with Pin and Clips 8-94152-712-1 / 8-94369-281-0 for Isuzu 4JA1Standard-size Isuzu 4JA1 diesel engine piston with a tin-coated surface, piston pin and retaining clips.
Part Numbers
8-94152-712-1; 8941527121; 8-94152712-1; 8 94152 712 1; 8-94369-281-0; 8943692810; 8-94369281-0; 8 94369 281 0.
Related Part Numbers
8-97319-087-0; 8973190870.
Engine and Applications
Isuzu 4JA1 2.5 L 8V diesel engine. Isuzu TFR, TF, pickup, LUV, D-Max, NHR and Panther applications; Chevrolet LUV, Opel Campo and Vauxhall Brava.
Specifications
Size: STD. Cylinder bore: 93 mm. Ring groove dimensions: 2.0, 2.0 and 4.0 mm. Piston pin: 31 × 76 mm. Total length: 87.8–87.9 mm. Compression height: 47.8 mm. Tin-coated surface.
Package Scope:
Sold per cylinder: one piston with piston pin and retaining clips. Piston rings are not included. The price is for one cylinder, not a multi-cylinder set.
DIESELIZUMI
| Compatible Model Brand | Chevrolet, Isuzu, Opel, Vauxhall |
|---|---|
| Engine Model | 4JA1 |
| Machine Model | Chevrolet LUV, Isuzu D-Max, Isuzu LUV, Isuzu NHR, Isuzu Panther, Isuzu TF, Isuzu TFR, Opel Campo, Vauxhall Brava |
| Equipment Type | Truck, Vehicle |
| Replacement Part Number | 8-94152-712-1 |
- Ships to:
- Choose country
- Delivery:
- Choose options for shipping rates.
- Import charges:
- Tax, VAT, duty, customs clearance fees, and local import charges may be collected by the carrier or destination authority unless clearly included at checkout.
- 5 stars0%
- 4 stars0%
- 3 stars0%
- 2 stars0%
- 1 stars0%
No customer reviews
Is the product durable? What model does it fit? Can you confirm with an OE/reference number?
Related Products
Related by current catalog categories and tags
Piston with Pin and Clips for Isuzu 10PE1 1-12111-678-0☆☆☆☆☆
Piston 8-97555-672-2 for Isuzu 4JK1☆☆☆☆☆
Piston with Pin and Clips for Isuzu 4BD1 6BC2 5-12111-325-1 1-12111-775-0☆☆☆☆☆
STD Piston 8-97602-800-0 for Isuzu 4HK1☆☆☆☆☆

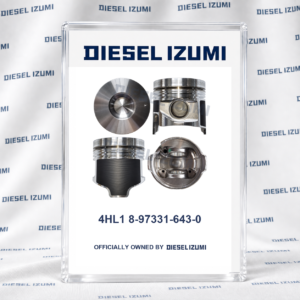

Piston 8-97331-643-0 for Isuzu 4HL1☆☆☆☆☆
