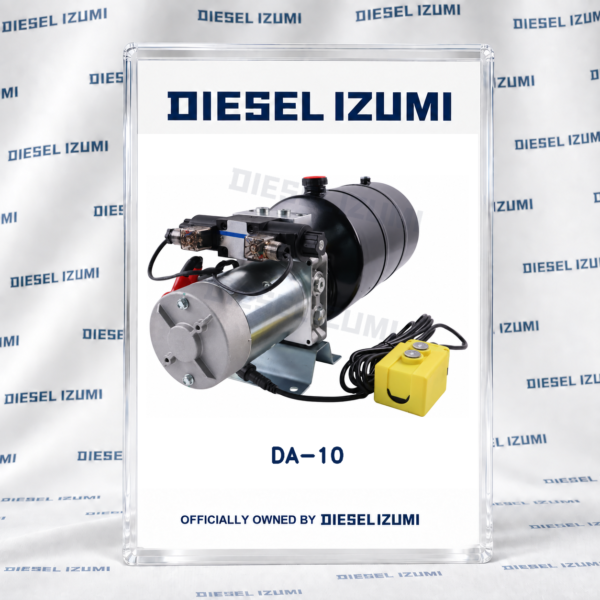

12V DC Double Acting Hydraulic Power Unit HPU-SR-12VDC-DA-10 with 10 Quart Steel Tank
US$354.98
New aftermarket replacement. Supplied as one complete 12 VDC double-acting power unit with 10-quart steel tank and wired remote. Match the reference and pictured configuration.
888 in stock
Send the OE/reference number, machine details, and product photos when the part match is uncertain.
Warranty eligibility and terms are reviewed against the details confirmed for the order.
Eligible unused, complete parts may be requested for return within 90 days after delivery, subject to inspection and approval.
Send part numbers, photos, and destination details for support follow-up.
12V DC Double Acting Hydraulic Power Unit HPU-SR-12VDC-DA-10 with 10 Quart Steel Tank12V DC double-acting hydraulic pump power unit HPU-SR-12VDC-DA-10 with a 10-quart steel reservoir and wired remote control.
Replacement Part Numbers
HPU-SR-12VDC-DA-10, HPUSR12VDCDA10.
Specifications
- Power supply: 12 VDC battery
- Motor: 1.6 kW, 12 VDC
- Reservoir: 10-quart heavy-duty steel tank
- Working pressure: 2600 PSI
- Flow rate: 1.1 GPM at 2500 PSI
- Action: double acting, power up and power down
- Pressure relief valve: set at 2600 PSI, adjustable
- Ports: SAE 8
- Wired remote: included, 8 ft long
- Mounting: flange with 4 through holes
Applications
Dump trailers, scissor lifts and lift tables.
DIESEL IZUMI
| Replacement Part Number | HPU-SR-12VDC-DA-10 |
|---|
- Ships to:
- Choose country
- Delivery:
- Choose options for shipping rates.
- Import charges:
- Tax, VAT, duty, customs clearance fees, and local import charges may be collected by the carrier or destination authority unless clearly included at checkout.
- 5 stars0%
- 4 stars0%
- 3 stars0%
- 2 stars0%
- 1 stars0%
No customer reviews
Is the product durable? What model does it fit? Can you confirm with an OE/reference number?
Related Products
Related by current catalog categories and tags
Hydraulic Quick Connect Coupler Set AM105466 AM105467 for John Deere Equipment☆☆☆☆☆
220V 4L Electric Grease Pump DBS-4-4N 50W☆☆☆☆☆

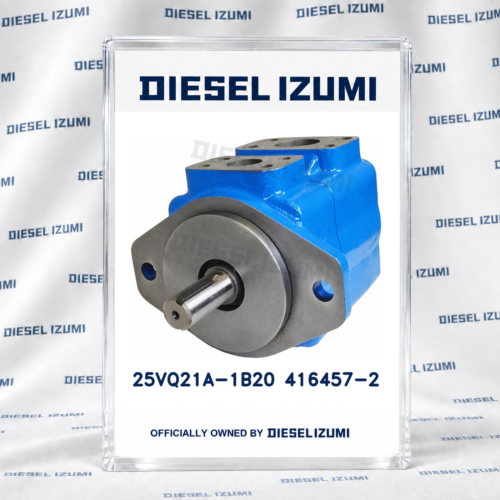

Aftermarket Vane Pump 25VQ21A-1B20 416457-2 Replacement for Vickers☆☆☆☆☆
